Charles Sumner Tainter and the Graphophone
Summary:Charles Sumner Tainter was born April 25, 1854, in Watertown, MA, the son of the inventor of an automatic wood-boring tool. He attended public school but was mostly self-educated, reading technical books from the local library, and his father's subscription to Scientific American. In 1870 Charles Tainter began working for electrical instrument companies in Boston. In 1873 he took a job with Alvan Clark and Sons of Cambridgeport, MA, makers of telescopes and optical instruments. This firm had received the contract to craft the instruments for the U.S. expedition to observe the Transit of Venus Dec. 8, 1874. Tainter was appointed a member of the expedition and traveled to New Zealand to record the transit, and around the world to return to Washington DC. In 1878, Tainter began his own business in Cambridge, MA, making scientific instruments, including electrical devices for Alexander Graham Bell. In 1879, he decided to accept Bell's invitation to set up a laboratory in Washington DC to experiment with the transmission of sound. In 1880 Bell and Tainter developed the radiophone using light waves and selenium cells to transmit wireless sound. For this invention, he was awarded a gold medal at the 1881 Electrical Exhibition in Paris. In 1881 he became part of the Volta Laboratory Association with Alexander Graham Bell and Bell's cousin, Chichester A. Bell, a noted chemist from London. These three men from 1881 to 1885 used the Volta prize money granted to Bell for his telephone invention to develop an improved phonograph called the graphophone, and received several important patents in 1886 that would shape the future of the recording industry. Tainter married Lila R. Munro in June 1886 and lived in Washington DC while he worked on improving the graphophone so it could be sold as a dictation machine to businessmen. While building a graphophone factory in Bridgeport CT in 1888, Tainter became severely ill with pneumonia. He recovered well enough to travel to Europe in 1889 to help establish the International Graphophone Co. and received a decoration from the French government at the Paris Exposition. He returned to New York City and continued working on improving the graphophone until 1893. In that year, he again became ill while struggling to make 100 graphophones for an exhibition at the Chicago World's Fair. In the following years he traveled to the Mediterranean, Europe, Canada and Alaska seeking a healthful climate. After a fire destroyed his laboratory in 1897, he worked at home in Washington DC to complete one of his final patents, a method of duplicating phonograph records. He tried sanitariums in New York and Battle Creek MI and Walter's Park PA to improve his health but none were successful. In 1903 he and his wife moved to San Diego where he would live for the next 30 years. Tainter was awarded a gold medal for his graphophone at the 1915 Panama Pacific Exposition in San Diego. His first wife died in 1924 and he married Laura F. Onderdonk in 1928. He was 83 in 1937 and living at 2960 First Ave. when the Smithsonian box sealed in 1881 was opened in Washington DC. At this time, Dictaphone Company honored him for his invention of the graphophone that led to founding of the company. He died on April 20, 1940.
Charles Tainter's career as an inventor began when he moved to Washington D. C. in November 1879 to set up a laboratory on L Street between 13th and 14th Streets. He began to experiment with selenium to improve telephone transmission using light. He also sought to improve Edison's phonograph, experimenting with an Edison tin-foil phonograph given to Tainter and Bell in 1879 by Gardiner G. Hubbard, Bell's father-in-law. In November the lab began work on selenium, with the help of scientific books borrowed from the Smithsonian. The photophone was tested in spring 1880 and Bell read a paper on the new device at American Association for Advancement of Science in Boston in the summer of 1880. A 1937 newspaper article described the photophone's success. Bell then went to Europe in 1880 to receive the Volta Prize of 50,000 francs ($10,000) for the invention of the telephone and demonstrated his photophone at the Paris Electrical Exhibition in 1881. While Bell was in Europe, Tainter started experiments with the Edison phonograph in late fall of 1880.

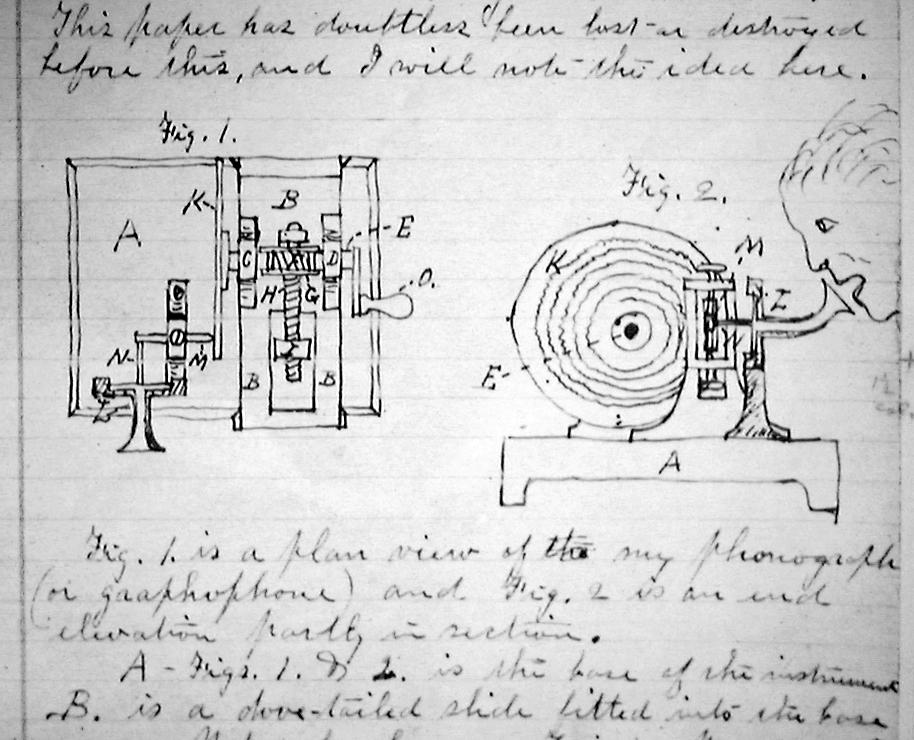

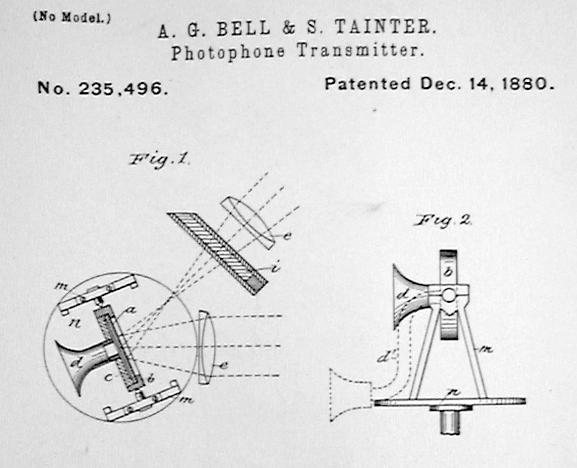

Tainter began his Home Notes March 28, 1881, that would fill 13 volumes by 1886. Volumes 9, 10, 13 were burned in a fire Sept. 1897. In the fall of 1880 Tainter moved the lab to 1221 Connecticut Avenue. Work on the photophone continued during winter 1880 into 1881 and patents were granted Dec. 1880. In his manuscript on the "Talking Machine" written in 1930, Tainter quoted from an 1888 article by Henry Edmunds that Edison allowed his British patent 1664 of April 24, 1878, to expire because his phonograph did not work. According to Edmunds, the patent was for "a backing of wax, or yielding material, instead of a grooved surface, in order to support the metal foil which received the indentation. The term indenting, as used by Mr. Edison throughout his patent specifications, clearly means the action of embossing the material without the removal of any part of it, as in forming a record in tin foil by pressing it with a style. But that he did not believe in the practicability of his Phonograph is shown by the fact that this patent was allowed to lapse in April 24, 1885, in consequence of non-payment of 100 pounds fee, just at the period of the completion of the experiments of the Volta Laboratory Association."
Tainter and Chichester Bell and A. G. Bell began work on improving the phonograph in the spring 1881, and found that the indenting method using a pliable strip of tin foil was the main problem. Some other method of engraving a solid material needed to be developed, using a cutting stylus to form a groove. This "new method of recording and reproducing sounds which I had brought to Mr. Bell's attention several months before" was illustrated on the first page of Tainter's "Home Notes" with this description: "I have had in my mind for several months past a method of obtaining a record of speech vibrations, and of reproducing the speech from the record so made. The idea occurred to me while discussing the phonograph, and the defects of that instrument with Mr. Bell, and he seemed to think very highly of it at that time. This idea together with some others upon the same subject, was noted upon a piece of paper as our note-book was not at hand at the time they occurred to us. This paper has doubtless been lost or destroyed before this, and I will note the idea here. [illustration] Fig. 1 is a plan view of my phonograph (or graphophone) and Fig. 2 is an end elevation partly in section... Attached to the end of the axle E. is a large circular disk K. upon which the speech vibrations are to be recorded. This disk can be made of some soft metal that can be easily engraved, or it can be made of some light substance, like hard rubber, ivory, celluloid, or box-wood. "
This use of a "light substance" to engrave a record groove was an important improvement over Edison's original phonograph of 1877. Tainter hired a mechanic May 1, 1881, to help him build the recording machine represented by the letters L and M and N in the illustration on the first page of the "Home Notes". This machine was a lathe designed to cut spiral grooves. He made another machine in Sept. 1881. Tainter first tried direct etching, but then tried the reverse, which was electroplating to form a raised instead of sunken line. Then he filled a groove with beeswax, cut the sound engraving in the wax, and filled the groove with reduced iron. He used a chisel-shaped stylus on June 8, 1881, and tried to use a jet of air under pressure to reproduce the sounds. He had discovered that a wax record cut with a stylus was able to better reproduce high-pitched sounds than Edison's tin-foil record.
Tainter began making lateral-cut or zig-zag records July 9, 1881, but experiments were interrupted by an attempt to locate a bullet in President Garfield July 11-Aug 28. Work on the recording machine resumed in September. Fearing that Edison would learn of their work before patents were filed, Tainter and the Bells decided to prepare a sealed tin box to be placed in a vault in the Smithsonian Institution containing their work. "We did this," said Tainter, "so that if Edison's company should get hold of our invention, through any leakage of information, before our patent was complete, we would have dated proof of what we had worked out."  They also signed a formal agreement October 8, backdated to May 1, creating the Volta Laboratory Association to be the owner of their patents. The box began to be prepared in Sept. 1881 for deposit in the Smithsonian, but would not be sealed until Oct 20. It would contain the Edison phonograph with a cylinder coated with wax and recorded by indentation with the words of Prof. A. Melville Bell, father of A. G. Bell, who said "I am a Graphophone and my mother was a Phonograph." This was recorded at an exhibition of the apparatus Sept. 25 and sealed in the box with an air-jet tube for reproducing it, but not the other air-jet apparatus. Also included were signed testimonials from the Sept. 25 exhibition, copies of pages from Tainter's Home Notes. The word "graphophone" was a transposition of the word "phonograph" to convey the same meaning. Tainter said in his Home Notes that it was Alexander Graham Bell who originated the term "graphophone" sometime before March 28, 1881, when the Homes Notes began. The word was coined as a little joke according to Bell's relatives who listened to the recording when the box was opened in 1937.
Tainter prepared an electrotype for his Smithsonian box that was finally sealed and deposited at the Smithsonian Oct. 20. In his Home Notes vol. 3, page 51, he said: "Several days ago we succeeded in getting a fair electrotype of a zig-zag phonogram, in the manner described on the preceding page. This electrotype was put into the sealed package which we have been preparing for some time past, together with the phonograph upon which nearly all the experiments have been made, and yesterday was taken to the Smithsonian Institution and deposited in the confidential archives of the Institution." The phonograph mentioned by Tainter was an Edison tin foil cylinder phonograph that had been used by Tainter and Bell for experiments since 1879. Tainter emphasized that his electrotype was different than the Edison cylinder: "It may be well to note that the record formed on the cylinder of the phonograph deposited in the Smithsonian Package was of the vertical type, or the form in which vibrations are impressed perpendicular to the surface of the recording material, like that used in the DICTAPHONE, and commonly called the "hill and valley" type, because the record groove is of varying depth. In 1881, we used to call this the Edisonian record, as it was the type Mr. Edison used in the Phonograph of 1877. The record on the electro-type in the Smithsonian package is of the other form, where the vibrations are impressed parallel to the surface of the recording material, as was done in the old Scott Phonautograph of 1857, thus forming a groove of uniform depth, but of wavy character, in which the sides of the groove act upon the tracing point instead of the bottom, as is the case in the vertical type. This form we named the zig-zag form, and referred to it in that way in our notes. Its important advantage in guiding the reproducing needle I first called attention to in the note on p. 9, Vol. 1, Home Notes on March 29, 1881, and endeavored to use it in my early work, but encountered so much difficulty in getting a form of reproducer that would work with the soft wax records without tearing the groove, we used the hill and valley type of record more often that the other."

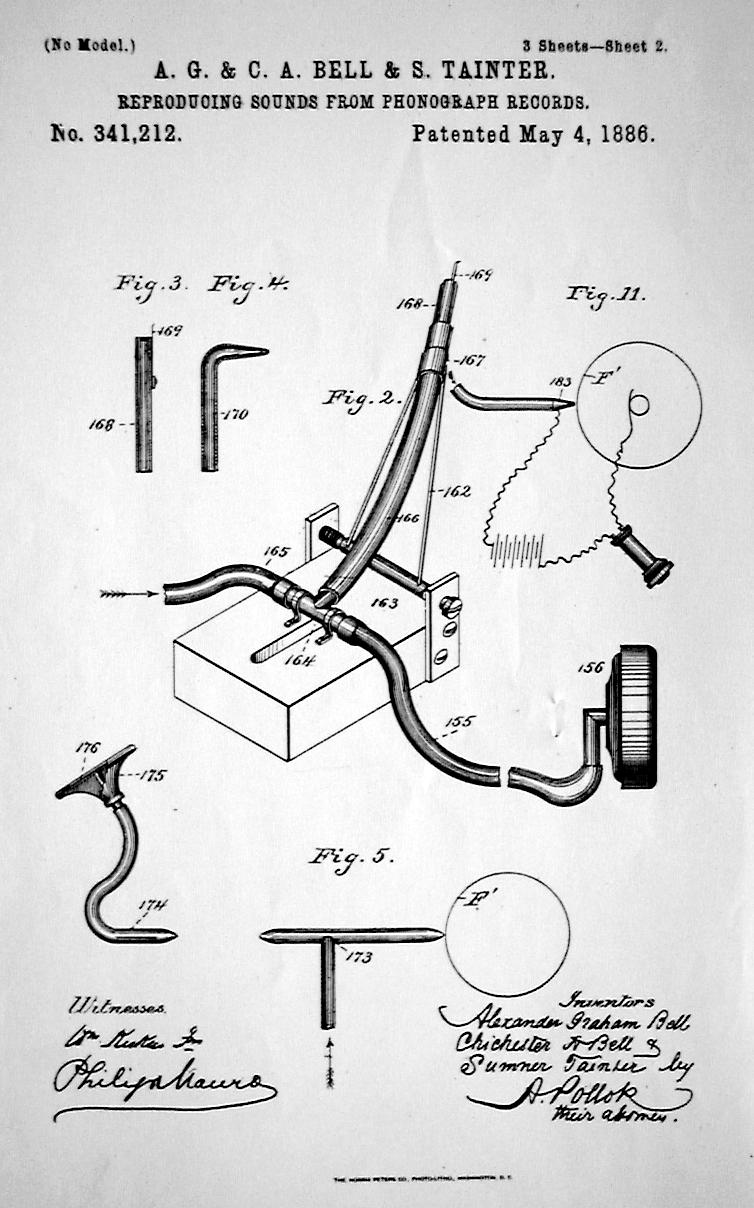

During this period of late 1881 and early 1882, Tainter experimented with different methods of duplication, such as stamping and pressing, different kinds of reproducers using magnetism and air and fluids, and different kinds of wax mixtures. He resumed work on his talking machine after a short vacation June 30-August 15, 1882. In August, he developed a speed governor similar to the device he had developed in 1873 making chronographs at the Alvan Clark & Sons factory for the Transit of Venus Expedition of 1874. The purpose of this governor was to produce a constant record speed. Tainter first described in his Home Notes Vol. 5 on 1881/12/30 the principle of constant surface velocity that was included in patent #341,214 of 1886/05/04. This made the flat disk a practical alternative to the cylinder.He was most successful during this period with the jet principle that later would be described in patent #341,212. He was trying to overcome one of the most persistent problems in recording, the surface noise caused by the needle rubbing inside the groove. "According to the present invention the record is caused to act upon a fluid (gas or liquid) in which it induces the sonorous vibrations or changes similar to such vibrations. The solid body or style which rubs over the record, or is otherwise directly vibrated by it, and which has heretofore always been employed, is or may be dispensed with. The vibrations are communicated to the air or other suitable fluid by direct contact of the same with the record. One advantage of the arrangement is that wear on the record is or may be thus reduced, if not practically avoided. It may also be observed that this method not only admits of reproduction from a very minute record, but also enables sounds of considerable loudness to be obtained. The fluid may remain as a body in contact with the record, or it may be forced against the same as a jet."
Although his Home Notes for the period from Dec. 11, 1882, and March 25, 1883 were lost in a fire of 1897, Tainter remembered continuing work on his jet reproducer. (pp. 49-51) He hired a photographer friend, Mr. J. Harris Rogers, to help with the photographic recording experiments. Chichester Bell noted on April 15, 1884: "During the past few days a good many experiments have been made by Mr. Rogers, Mr. Tainter and myself in photographing speech vibrations impressed on a jet. Mr. Rogers has made enlarged copies of parts of the negative from which the positive facing page 62 were printed, which show most beautifully the variations in form of the jet. A remarkably beautiful photograph has been taken by Mr. Tainter and Mr. Rogers of a beam of light varied by transmission through the nappe formed on a glass plate in front of a slot, by a bichromate of potash jet, to which I recited Moore's - 'Believe me of all those endearing young charms,' etc. During May and June, Tainter perfected the jet telephone transmitter for patent #336,173."In the early spring of 1885, I designed and made a model of the form of talking machine shown in Figs. 18-19-20 of patent 341,214, which forms the records on long narrow strips; in this case, strips of paper coated with the wax mixture we were using at that time." This was described in the patent lines 66 on p. 5 to line 24 on page 6. From this machine, Tainter learned the need to reduce the size of the record groove. "This was a very important discovery, and I followed it up immediately, by constructing a machine of the cylindrical form."
Tainter's drawings of his first cylinder machine were given to a mechanic and it was built by May 14, 1885. This was a machine similar to patent 341,288 with a paper cylinder 9-inches long and 2 inches diameter coated with a wax mixture 1/4-inch thick. The cylinder played for 10 minutes and the spacing between grooves was 1/250 inch (i.e., 120 grooves per inch "pitch").

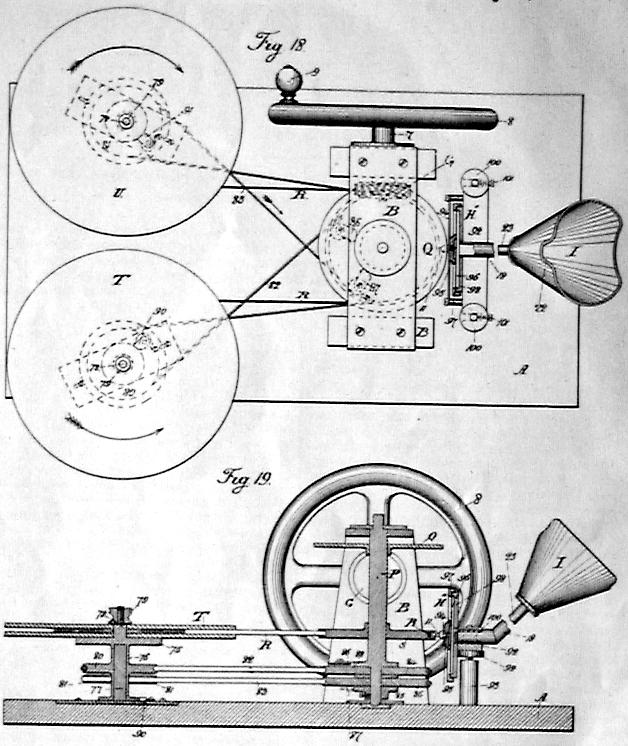

Tainter built a second cylinder machine July 6, 1885, with a smaller cylinder, 6 inches long and 1-3/8 inches diameter, with a "pitch" of 150 grooves per inch rather than the first machine's 120 grooves. On July 15 he added hearing tubes of the kind shown in Fig. 16 of patent 341,288. He continued perfecting this machine through August 1885. It was then decided to build and test 6 machines before the Volta Lab would end with the departure of Chichester Bell on November 1. At the suggestion of Hubbard, Tainter went to New York to supervise the construction of these 6 machines at the factory of Bergman & Co., 292 Avenue B, in New York. But the work was too slow, so Tainter shipped the unfinished machines to D.C. and returned to the Volta Lab to finish them there in November and December 1885. These machines were completed by Jan. 1, 1886, and were similar to patent 341,288. The earliest Smithsonian graphophone that survives appears to be similar to these first successful models built by Tainter."About the first of Jan. 1886, these machines were ready, and proved so satisfactory the members of the Volta Laboratory Association decided to form a joint stock company to succeed the Association, and take over our inventions, and attend to the marketing of the Graphophone devices." The agreement to form the Volta Graphophone Company of Alexandria, Virginia, was signed Jan. 6, 1886, by the 3 Volta associates and James H. Saville and Charles J. Bell (brother of Chichester Bell, and a lawyer and banker). As a result of the agreement, the Volta Graphophone Company was incorporated in Virginia on Feb. 3, 1886.

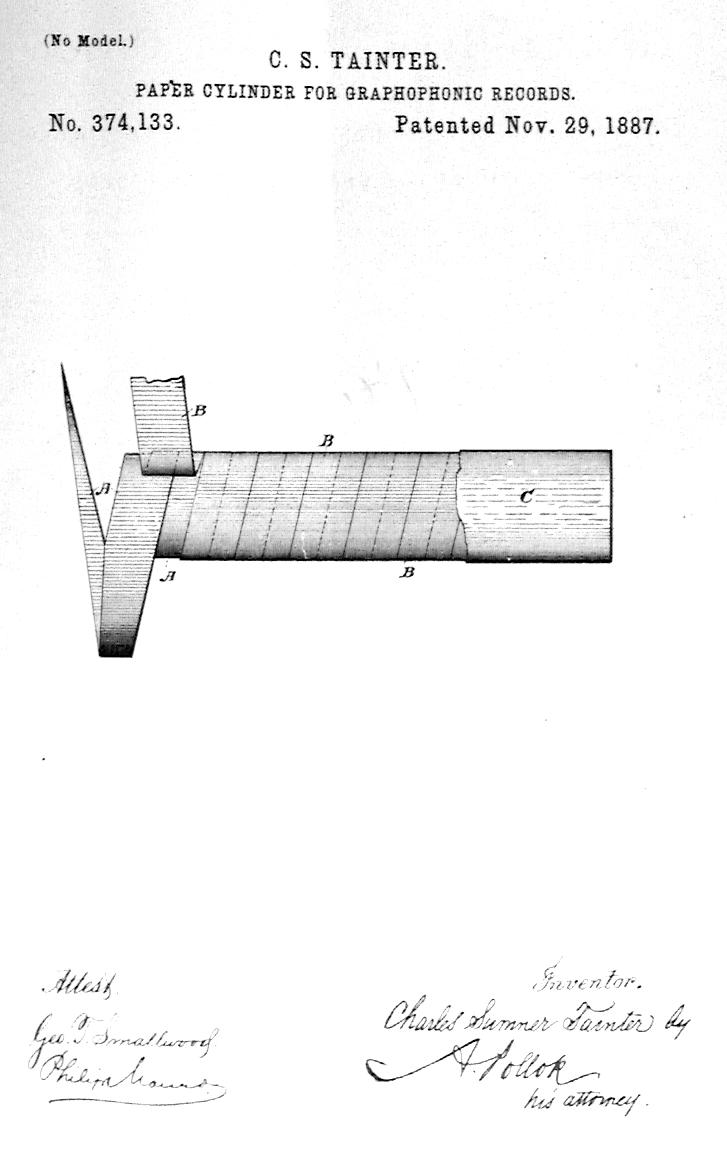

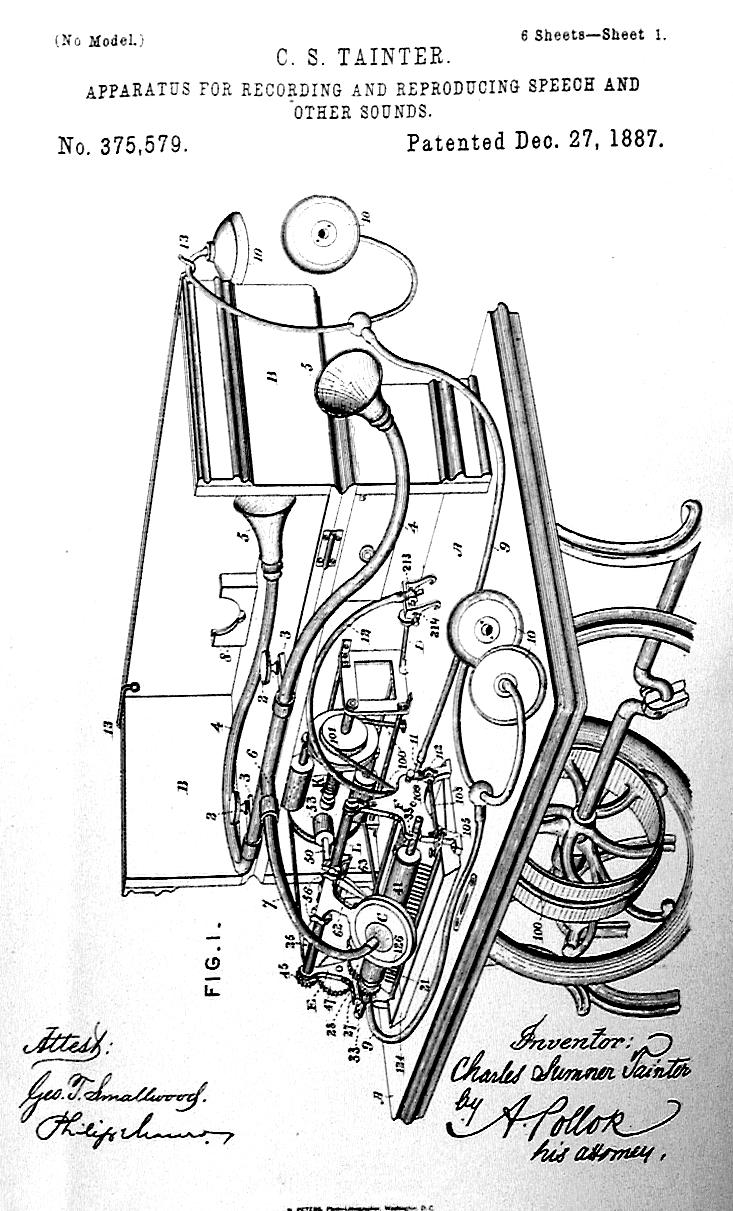

Tainter established a new laboratory for the company at 2020 F Street in Washington DC and hired a mechanic, Charles Stolpe, to help improve the graphophone. To replace the original wax-covered paper cylinder that needed to be shaved clean for each use, Tainter developed the helically wound paper tube that was granted patent 374,133 on Nov. 29, 1887. He also developed a machine to make the paper tubes. This tube "became in later years, an extensive article of commerce, and is now used for many purposes, such as mailing tubes, cartons for groceries, drugs, and many other things, besides the recording tubes for which it was specially invented." Patent 428,646 was granted May 27, 1890, on improved machine that made the tubes in lengths of four feet and heat-fused a very thin and highly polished coat of wax to the surface. This corrected a problem of air bubbles in the wax of the early tubes.The new investors in the Volta Company wanted to sell a dictation machine, and Tainter complied. "In 1886, after correcting the record cylinders troubles, I designed and made the type of Graphophone shown in patent 375,579. This machine was arranged specially for dictation purposes, and had a number of new features added. As this was before the age of electric motors, and their conveniences, the motor problem was a serious one, and after considering all of the various kinds that might be used for the Graphophone, I settled upon the sewing machine type of treadle motor, as the best, all things considered, and the apparatus was arranged upon a Wheeler & Wilson sewing machine table, of the style in use at that time." This treadle graphophone had a new speed regulator to rotate the cylinder at a constant speed, starting and stopping keys, a brush to clean wax shavings, a new feed screw and carriage, a detachable cylinder arbor to make it easy to add and remove cylinders, a pointer added to the carriage, and a new reproducer. This graphophone was intended to be sold as a dictation machine for business use."
"I find upon referring to my article published in the Electrical World July 14, 1888, that I constructed another model in 1886, which was intermediate between that of patent 341,288 and patent 375,579. This model, which had escaped my memory, is shown in the illustration Fig. 4, of the Electrical World article. The machine was a modification of patent 341,288 model, and I arranged it upon a sewing machine table with a governor, as shown in Fig. 4 of the World article."In 1887 Tainter improved his wax mixture with the addition of a hard carnauba wax. A competing patent filed by Edison disputed his patent application of Nov. 19, 1887, but Tainter proved his application was the earliest and was granted patent 393,190 on Nov. 20, 1888. By the end of 1887 Tainter had developed his new ozocerite wax to be completely different from Edison's wax. The ozocerite patent 421,450 was filed Nov. 14, 1887 and granted Feb. 18, 1890. "At this period there was strong suspicion among inventors that there were leaks in the patent office, and that all patent applications were not being kept secret, as they should have been. The filing of interfering application was a favorite method of getting an invention away from an inventor. It forces him to prove when the invention first occurred to him, which is usually difficult to do." Tainter had been keeping detailed notes and drawings since 1881 in his Home Notes and was able to win this patent case and the important case of 1896 that upheld the validity of the graphophone patents.
Tainter improved the cylinder holder and ear-plugs in patent 380,535, and added a new feature that allowed the making of two records at the same time, allowing the operator to keep one copy of a dictated letter and mail a duplicate copy to the correspondent. In early 1887, the Volta Company investors urged Tainter to make several models to test. "These gentlemen were Mess. Andrew Devine, and John H. White, both official reporters of the National House of Representatives, and James O. Clephane, a former official reporter of the House, but who at that time had a large stenographic business of his own, and was also occupied with the promotion of several important inventions of that day; one of them being the Mergenthaler Linotype machine, and another, the Lanston Monotype machine, both of which came into very extensive use." Tainter gave Andrew Devine one of the new dictation graphophones to take to the Capitol for use in the House of Representatives. "As soon as this was demonstrated the system was adopted by the other House reporters, and later by the Senate reporters as soon as they were able to get the machines to use."The new American Graphophone Company sought to merge with Edison in May 1887, demonstrating to two of Edison's representatives at the St. James Hotel in New York the new improved graphophone. Tainter was opposed this merger and believed that a showing his graphophone to Edison would cause the inventor to start work again on his old phonograph that he had put aside in 1879. Tainter was right. On May 26, 1887, Edison employed Dr. Schulze-Berge, who had worked under Helmholtz in Germany, to develop a natural wax material, similar to the carnauba mixture that Tainter was then using, to replace the impractical tin foil of Edison's old cylinder phonograph.  Edison organized a new company, the Edison Phonograph Works, April 30, and delivered an Improved Phonograph to the Electric Club in New York in May. Edison finished his Perfected Phonograph after a 72-hour marathon beginning June 13 and ending June 16, captured in the famous photo made by W.K.L. Dickson at 5:30 am June 16. On June 27, Edison signed the contract that sold his company to Jesse Lippincott for $500,000. The new North American Phonograph Co. was formed by Lippincott July 14. The American Graphophone Co. signed an agreement March 26, 1888, to allow Lippincott to sell graphophones.
The Graphophone Company tried to manufacture 300 machines in New York but the work went slowly and required many adjustments in the laboratory for defects. Tainter proposed that the Company establish its own factory to make the graphophones, and on July 26, 1888, the Company signed an agreement with Tainter and Saville to develop such a factory. After Tainter finished negotiations in late July with Henry Edmunds of the English electrical firm of Walter T. Glover & Co. to allow Edmunds to sell to sell the British patents of the Volta Co., he and Saville went to Bridgeport Conn. to rent the old Howe Sewing Machine factory. The Volta Lab then moved its machines and workers to Bridgeport and slowly struggled to build the machine tools necessary to manufacture graphophones for Lippincott's sales agencies. By October, Tainter was physically exhausted and came down with a bad case of pneumonia. He went to Barbados in the Caribbean until sufficiently recovered to return to Bridgeport in Feb. 1889.The only company that was able to successfully sell the treadle graphophone was the Columbia Phonograph Company organized January 15, 1889, by Edward D. Easton. His success was based on sales of music rather than dictation machines, especially cylinders of the popular United State Marine Band under John Philip Sousa. Easton produced the first record catalog in 1890, a one-page list of Edison and Columbia cylinders. This would grow to 10 pages by 1891, including 36 songs by the popular whistler John Yorke Atlee, and to 32 pages by 1893. When Tainter became ill and resigned from the American Graphophone Co., Easton became a company director and sought a merger with Lippincott and Edison interests. But Lippincott's health was failing and he would lose control of his North American Co. with the phonograph rights eventually going back to Edison by 1894. Easton became general manager of the American Graphophone Co., and decided to file a lawsuit against his own Columbia Phonograph Co. for selling Edison phonographs that infringed on the Volta Lab wax cylinder patent. His strategy was successful when the courts ruled against Columbia and validated the original graphophone patent over Edison's improved phonograph. Edison was forced to sign an agreement with Easton in 1896 to share patents. This allowed Easton to make and sell music cylinders of the Edison type under the graphophone name. The old treadle graphophone with its narrow 6-inch cardboard cylinders never did work very well and was discontinued. The Columbia Phonograph Co. rose to become one of the Big 3 phonograph companies, producing Edison-type cylinders that played on low cost spring-motor machines such as the 1897 Eagle model that sold for only $10. Emil Berliner created the third member of the Big 3 that would dominate the phonograph business by 1900. Berliner was an employee of the National Bell Telephone Company in Boston since 1879 when he decided to quit in 1884 to become a full-time inventor. With his new wife, Cora Adler, he moved to Washington DC and began to develop the gramophone in his lab on Columbia Road between 14th and 15th Streets in 1886. Berliner filed patent application 237,060 on May 4, 1887, for the lateral-cut method of on a lampblacked surface that was photoengraved on a permanent "indestructible" flat disc. This patent application was not approved, being similar to the method of Charles Cros. He reapplied Sept. 26 and his patent 372,786 was granted Nov. 8. This patent became the foundation for Berliner's rights to the non-wax disc with a lateral-cut groove at an even depth. Berliner in the meantime improved his process and had applied for a new American patent Nov. 7 (not granted until July 28, 1896) and for a British patent Nov. 8. This improved process used a lampblacked glass disc to make negative master of glass that was used to expose grooves created by acid etching on a metal disc of copper or zinc. The earliest Berliner disc is a zinc disc at the Smithsonian dated July 26, 1887. The first public story describing this process was published in Electrical World Nov. 12, 1887, on page 2, showing an 11-inch glass disc with duration of 4-minutes. However, Berliner was yet unable to mass reproduce copies of his glass masters, and everything was still experimental. He began to etch directly on zinc discs by Feb., using a thin wax coating to make the master recording impression, but had problems with impurities. On May 16, 1888, he lectured at the Franklin Institute, demonstrating a machine with a pivot arm at 30 rpm. By Aug., he increased the speed to 60 rpm and began to use celluloid for copies, but it was too soft. He showed a new machine to Electrical World Aug. 18, but still had problems making copies of his discs. By July 10, 1889, Berliner was finally able to make hard vulcanized rubber copies of his discs, pressed in a mold from a steel-faced copper or zinc negative master. Werner Suess helped him develop an improved machine. Until the American patent was granted, the gramophone could only be sold in Europe. Berliner went to Germany in August, gave a public demonstration Nov. 26 to the Electro-Technical Society and a story was printed in the New York World Feb. 5, 1890, that Berliner's machine was superior to Edison's.
Berliner published in 1894 his first list of gramophone discs for sale, at 60 cents each, 6 and 7/8-inch diameter (after 1895 are 7-inch), made of celluloid, after 1895 of hard rubber, after 1897 of shellac.  The Berliner Gramophone Co. finally received its American patent in 1896, began to manufacture machines wholesaled to distributors such as Frank Seaman's New York Gramophone Co. for $3 per machine and $1.50 per dozen discs. Seaman sold under another name, the National Gramophone Co.  Eldridge Johnson filed Aug. 16, 1898, for a patent on the lateral-cut wax master and electroplated matrix master and multiple stampers. Johnson later said that this "changed the Gramophone or disc Talking Machine from a scientific toy to a commercial article of great value. It was the first and most important step in the evolution of the disc talking machine."  Eldridge Johnson had improved the gramophone with a spring motor in 1897 and would be the founder of the Victor Talking Machine Co. in 1901 with the "little nipper" dog as trademark. Philip Mauro of Columbia won lawsuit against Berliner in 1899 with a dubious "floating stylus" theory, and filed an injunction against Berliner to prevent his use of the gramophone name. Columbia made machines based on the Joseph Jones patent filed 1897, awarded 1901, but Johnson would eventually win his lawsuit over the Jones patent claim in 1911. Victor and Columbia would pool patents 1902. After 1900, the disc phonograph of Victor and Columbia would grow in popularity over the cylinder phonograph of Edison. Shellac would replace wax for mass duplication of records. Although the graphophone with its long 6-inch wax cylinder never succeeded in the market place, the influence of Charles Sumner Tainter was significant and long lasting. He had been the first to introduce the method of cutting a zig-zag spiral groove in the wax surface of a record to improve sound quality. The helically wound cardboard tube would become a widely used packaging product. His work at the Volta Laboratory with selenium and the photophone were the first successful attempts at wireless communication using light waves. His Graphophone Company would lay the foundation for the later success of the Columbia Phonograph Co. and the Dictaphone Co. His more than 40 patents, including 25 in the field of sound recording, made him one of the most productive experimental scientists in that Heroic Age of Invention that produced Bell and Edison and Berliner at the end of the century.
