These diagrams were compiled by Dan Mortensen and Bob Smith, based on conversations with Frank Laico.

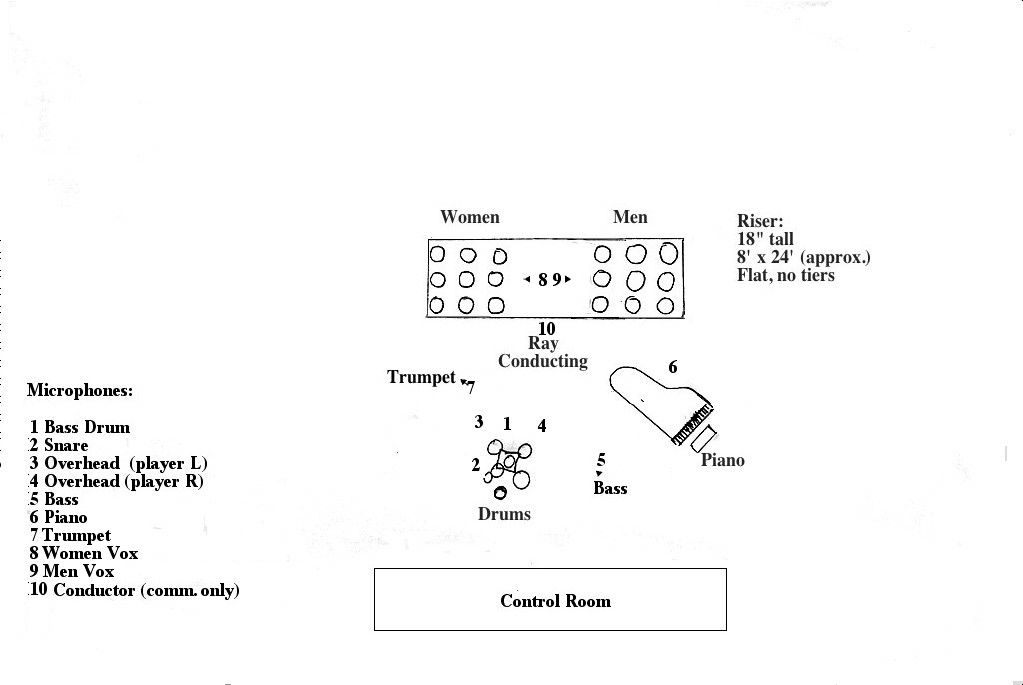

Ray Coniff setup

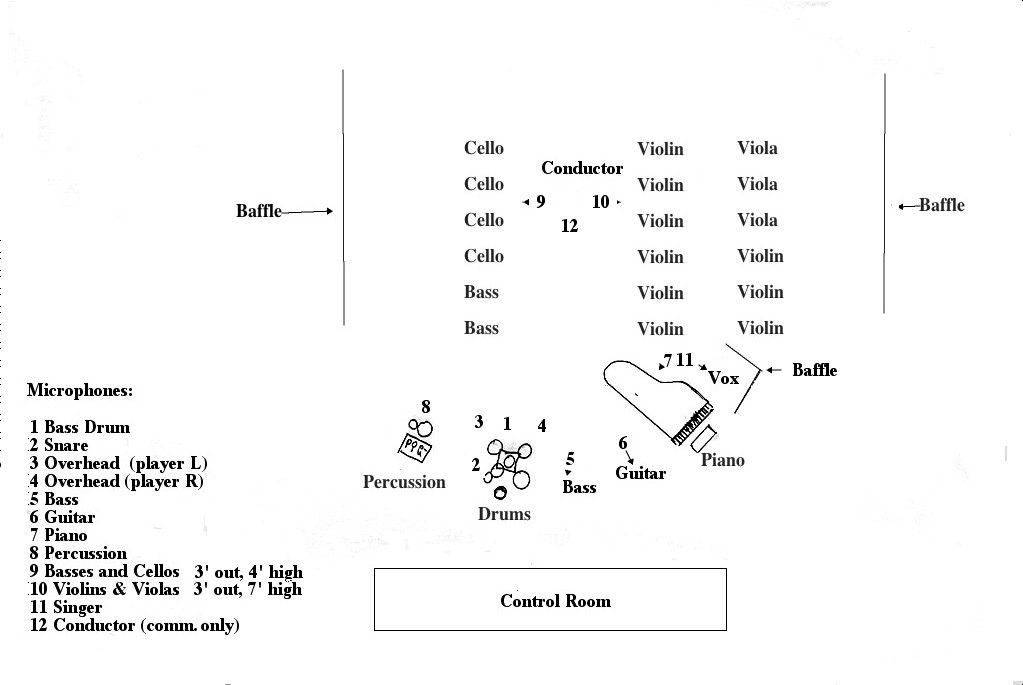

Recording strings

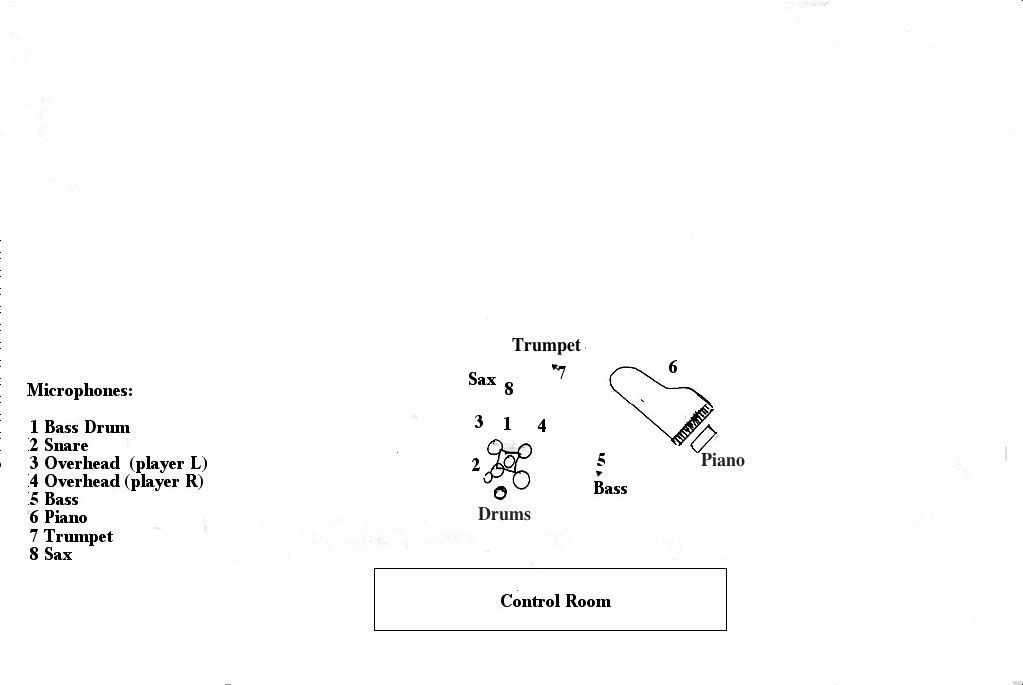

Real Ambassadors #1

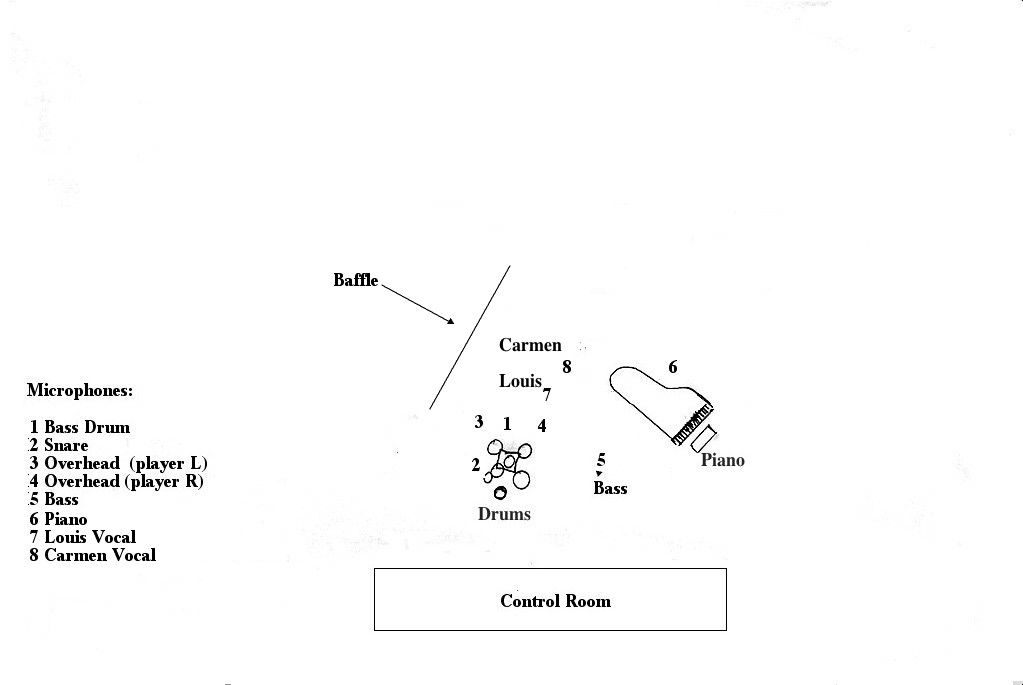

Real Ambassadors #2 (Carmen McRae, Louis Armstrong)
